2011 CP-BOURG BST10-e&BM-e&TD-d

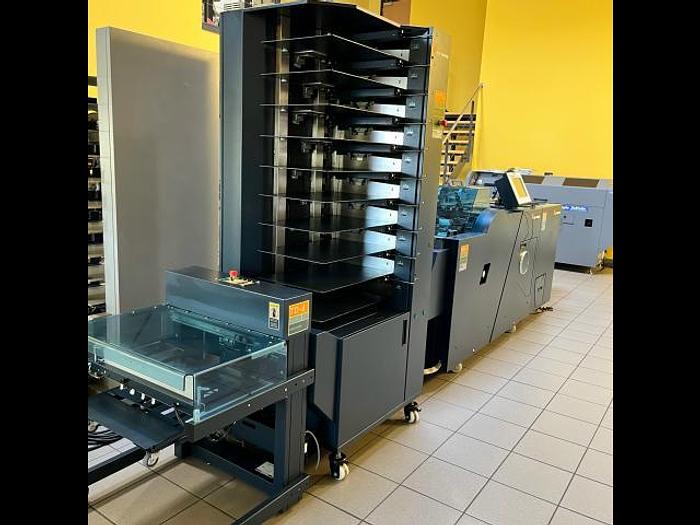

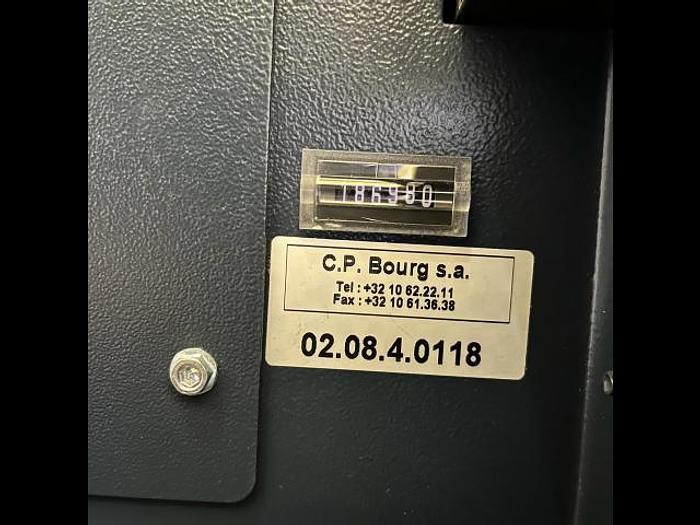

CP BOURG BST series E line with 1 BST-e suction collator No. 02.08.4.0118 (counter: 185497) -

Large format vertical suction collator capable of producing paperback booklets on demand from offset, digital or hybrid workflows.  - maximum loading capacity in the posts: 70 mm  - wide range of paper sizes  - accommodates stacks of paper up to 350 g/m2  - technology of suction belts and sheet separation by fully automated blower  - autonomous feeding stations  - dual output power supply  - function of automatic ejection of erroneous jobs  - ultrasonic missing or double detection  - friendly graphical user interface with touch screen  Maximum speed with the BM-e: 11,000 sets:h.  paper weight: 40 to 350 g/m2  dimensions: main tower: 110x81x200 cm (440 kg) - additional tower: 100x81x200 cm (400 kg)

+ high-end BM-e booklet maker where the paper flow follows a stitch-fold-trim process with guaranteed set integrity, a maximum of 120 pages per booklet (30 sheets) and a maximum speed of 5,000 booklets/ hour – making it best in class. Large sheet formats of 370 x 600 mm (14.57 x 23.62 inches) can easily be handled by the BM-e and create, for example, oversized calendars in B3 format or landscape booklets in A4 format (format US letter).

    Staple, fold and trim up to 30 sheets (75 gsm)     Head/corner stitching up to 55 sheets (without folding or cutting)     User-friendly, professional-grade color touchscreen     secondary output eject tray for jobs that don't require bending     Allows ejection of defective jobs

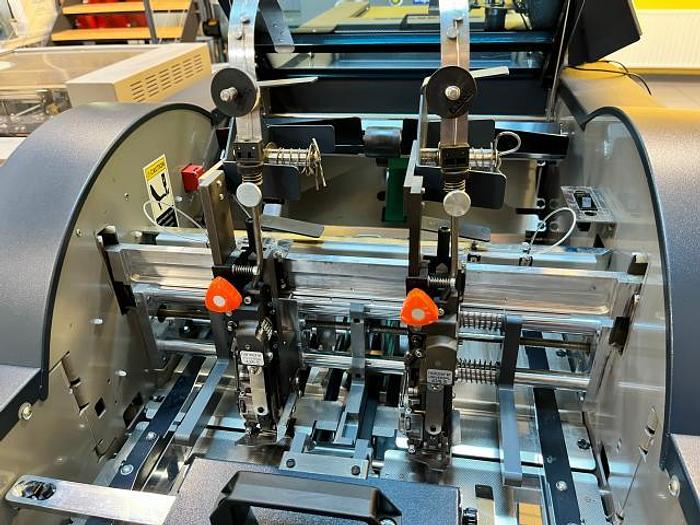

stitching and folding module AGR-PA BM-e with 2 Höhner Universal 43/6S heads for top, corner, side or saddle stitching with automatic adjustment of the stitching heads

fully automated trimming module TR BM-e which automatically adjusts to the thickness of the brochure

+ delivery conveyor  TD-d receiving stacker for formats 450 x 320 mm (62x75x93 cm - 71 kg)

 Dimensions of the BM-e (stitching and folding module) (W x D x H)   177.5 x 71 x 155cm 420kg

Trimmer module dimensions (W x D x H)   69 x 71 x 155cm 180kg

Output conveyor   87.5cm – 34kg

Maximum productivity   5,000 booklets/hour (5 A4 sheets, 90 gsm)

  Paper weight   60 to 350 gsm

saddle stitch  Minimum paper dimensions   119 x 180 mm (4.68 x 7.08 inches)

Maximum paper dimensions   370 x 600mm (14.57 x 23.62 inches)

Booklet thickness (with folding and cutting)   2 to 30 sheets of 75 gsm or equivalent (cover included)

  head/corner stitch  Minimum paper dimensions   119 x 170 mm (4.68 x 6.69 inches)

  Maximum paper dimensions   370 x 300 mm (14.57 x 11.81 inches)

Booklet thickness (without folding or cutting)   2 to 55 sheets of 80 gsm or equivalent (cover included)

 Folding/trimming  Minimum paper dimensions   119 x 70 mm (4.68 x 2.75 inches)

Maximum paper dimensions   370 x 300 mm (14.57 x 11.81 inches)

Booklet thickness (folded and cut)   2 to 30 sheets (8 to 120 pages) of 75 gsm or equivalent (cover included)

Front trimming   0 to 25 mm (0 to 0.98 inch)
