2008 POLAR-MOHR 137 XT

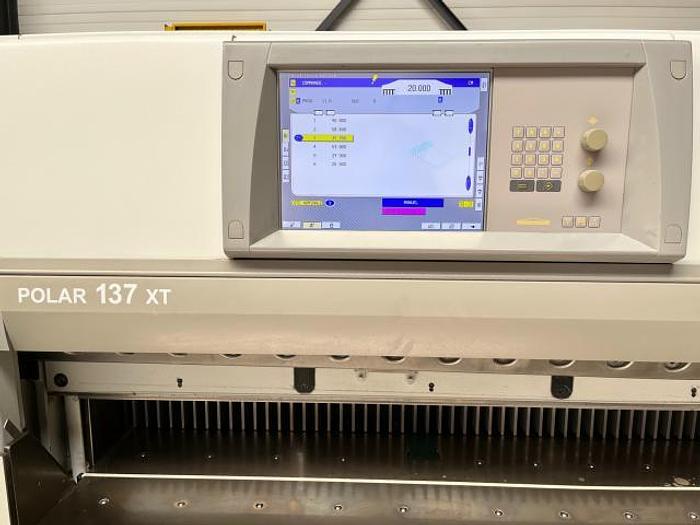

high-speed cutter POLAR 137 XT of 2008, n° 7841412, 137 cm,(machine installed in 05/2009)

programmable top-of-the-line model, with 15" colour display and touch-screen employed for precisely cutting paper, paperboard and cardboard, plastic foils etc. Process sizes with diagonals of up to 137 cm (max. 77X112cm/ 30 5/16" x 44 1/8", e. g. III b formats). The reams with diagonals exceeding 137 cm/ 53 15/16" (i. e. a max. sheet length of 137 cm) can be turned on the rear table provided there is a retractable side gauge.

features :

frequency-controlled backgauge speed

programmable backgauge speed and ramps

automatic dimensional setting by program control

nickel-refined tables surfaces and aligning gauges

15" TFT Colour Display

Touch-sensitive operation

program memory (2000 programs)

quick information for symbols

process visualisation

rapid search keys for dimensional setting according to printed image

programmable additional functions

safety clamping pressure

menu-driven OptiKnife knife change

automatic knife ready/active

maintenance cut counter

special machine diagnostic service program

hydraulic clutch and clamping

adjustable program and step parameters

block programming with graphic operator guidance

repeat calculator with operator guidance

clamping without cut, programmable

etc...

with airtable, big side tables with air (100x100), rear guard with slot

cutting width : 137 cm

feed depth : 145 cm

front table depth : 73 cm

table height : 90 cm

clamp opening max. 165 mm

clamping pressure : 150-5500 daN

Dimensions : 288x282x171 cm

weight : 4.150 kg – 6.6 kVA
