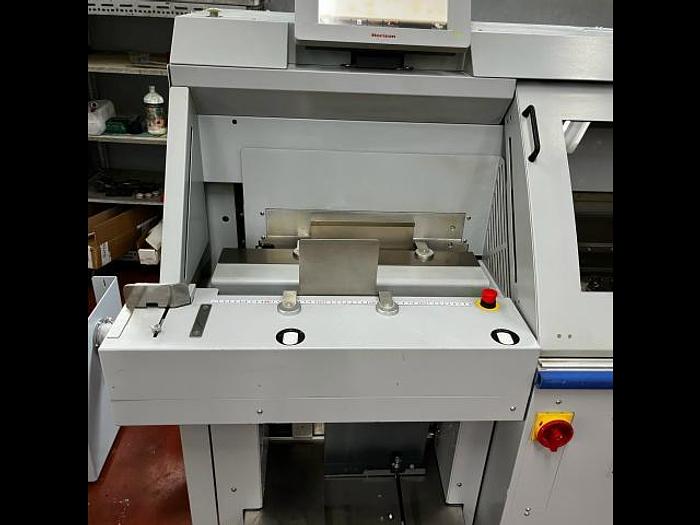

2013 HORIZON BQ-280 PUR

one clamp perfect binder HORIZON BQ-280 PUR n° 005002 year 2013

- clamps: 1

- spine gluing: PUR

- glue refill: by pre melter

- sight gluing: hotmelt

- book block thickness: integrated monitoring station (outside the clamp)

- milling section: with extraction

- milling depth: adjustable

- cover feeder: suction drum feeder with 4x scoring

- technology: touch & work

- saveable jobs: 200 memories for repeat orders

- sheet size:

max: 385 x 320 mm; min: 135 x 105 mm

- cover size:

max. 660 x 385mm; min. 240 x 135mm

- book thickness: max. 50mm; min. 1mm

- cover weight range: 90 - 300 g/sqm

- cover pile hight: max. 70mm

- speed: max. 500 cycles/h

dimensions: 3.055 x 905 x 1.520mm

- power: 400V/ 50Hz - 2,7kW

-weight: 900kg

Counter : 268.589
