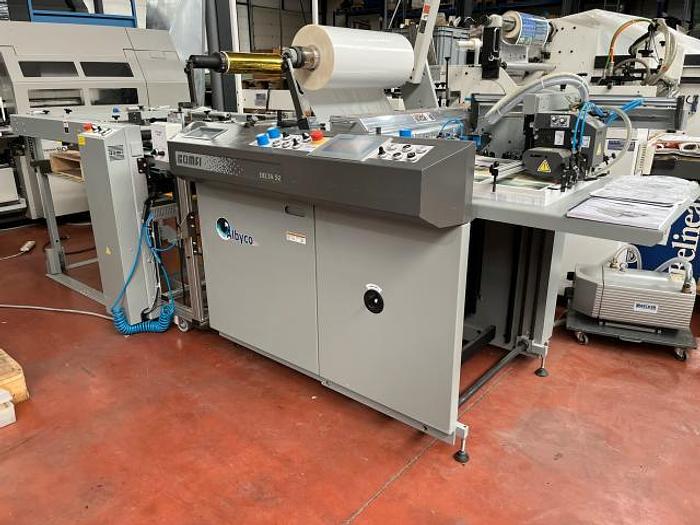

2013 KOMFI DELTA 52

• compact automatic DRY laminator KOMFI DELTA of 2013-2017 N°2DLS514

                gilding module -Rewind mudle B2 OTFB2 year 2017 n° PE230-N°20TF008

 Automatic stacker B2 with separate drive SZ-01-B2 year 2015 2STS049

 Automatic feeder with fixed lifting table

Single action Komfi feeding head

Vacuum pump

Automatic sheet overlap control

Mis-feeding detection

Laminating cylinder heated by 3-zone electro-resistance heater

Temperature pressure roller

Air pressure decrease detector

Airshaft for film unwinding

Combined de-curling unit (bar and roller)

Automatic sheet separation using built-in perforator

Pneumatic snapping unit is electronically controlled

Speed adjustable separating roller

Sheet separation detector

Fixed delivery desk

 Technical data

Paper size min. 200 x 200 mm

Paper size max. 540 x 760 mm

Pile height 635 mm

Grammage 115 – 600 g/m²

Speed 35 metres/minute

Films OPP, PET, Nyon, textured

Power supply 400 V, 50 Hz, 7.3 kW

Dimensions (L x W x H) 2,680 x 1,230 x 1,440 mm

Weight 860 kg

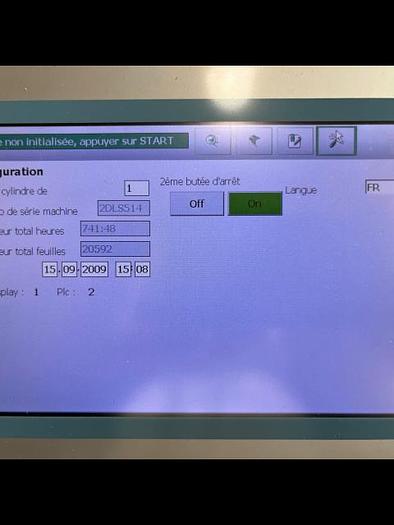

COUNTER : 741,34 hours
