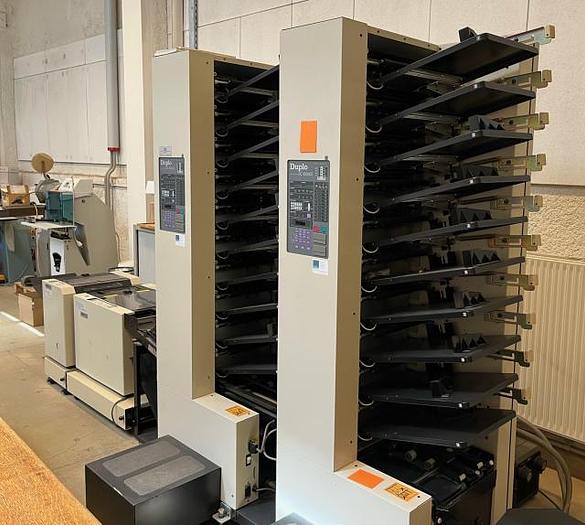

1998 DUPLO DC-1000S & DBM-100 & DBM-100T

Bookletmaker/collating Line DUPLO with 20 stations including: -

2x DUPLO DC-10000S vertical suction lathe from 1998 n°980600378, with double air and brush system for sheet separation, paper transport by double belt conveyor 20 posts - capacity: 55 mm per post paper size: min. 120x200mm - max. : 350x500mm paper weight: 40-300 g/m2 for the 2 upper and lower stations                                 40-250 gsm for other items variable speed up to 5000 sets per hour - booklet production up to 2370 per hour control panel with extensive programming options, 5-digit counter, pre-programmable counting, total counting automatic double, missing, empty station and jam detection programming of 5 digital pre-selection with automatic insert insertion dimensions: 63x70x205 cm - net weight: 375 kg - with compressor

+ DUPLO Lift Unit LU-HM

+ DBM-100 finisher For automatic stapling and folding (saddle, corner or side stapling) with document format auto-adjustment mechanism, control box with 8 possible programs (3 pre-programmed and 5 other applications that can be added in memory ), magazine with a capacity of 5000 staples (the interface stops the machine once the reserve is exhausted) Paper format : Corner or side stapling: from 139x210 mm to 231x320 mm Saddle stitching and folding: from 200x200 mm to 450x320 mm brochure format from 200x100 mm to 320x225 mm 2 stapling heads paper capacity (80 gsm): folded sheets: 25 / flat sheets: 30 detection of jams, misses, empty staples dimensions: 55x114x68cm net weight: 80 kg - 230V - 50Hz

- DBM-100 T cutter module (hunting cutter, 80 kg)

+ Jogger
