2005 JBI LHERMITE EX610

most flexible automatic punching machine JBI LHERMITE EX610 n°114 of 2005 allowing to punch all types of punching, perforation and tab cutting, max. size 610x530 mm

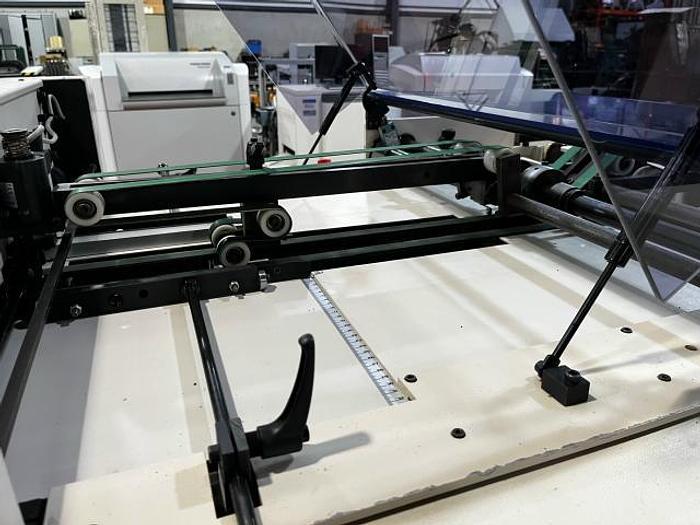

continuoulsy feeding of the sheets via lightweight aluminium trays which rise automatically

pick-up beak : feed from the top of the stack at one bite at a time, bit can be adjusted to take a maximum of 2.5 mm, variable according to the quality of the paper

sheets automatically aligned laterally and longitudinally, non contact of transport bands during punching for unmarket sheets

fast tool and format changeover time : format changeover time is 5 to 15 minutes / tool changeover time is 2 minutes

tool removal and punch change time : 15 minutes

turnover of the sheets by means of a drum to retain their pre-colled sequence

min. size : 110x95 mm

machine speed : 120 cycles max. per min.

maximum bite/punching thickness : adjustable up to 2.5 mm

Supplied with 4 tools :

1x 2:1 round

1x 3:1 round

1x 3:1 small hole

1x 3:1 square hole
