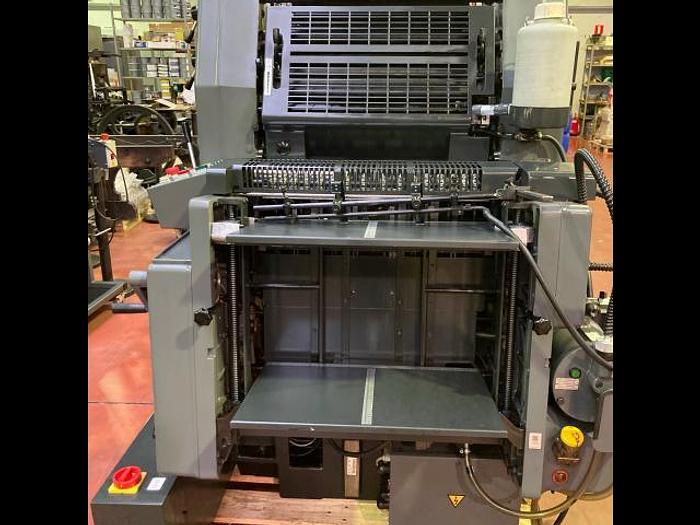

1999 HEIDELBERG Printmaster GTO 52-1+

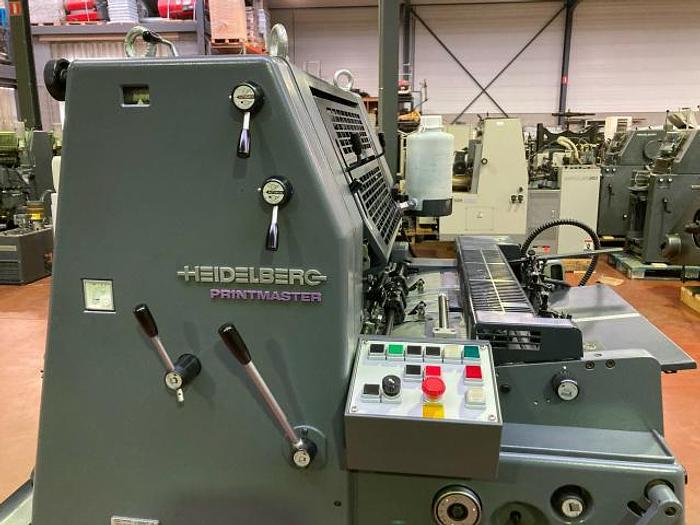

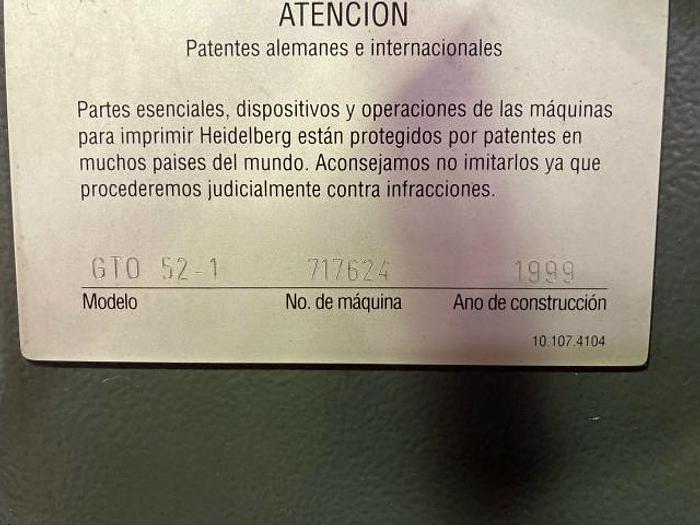

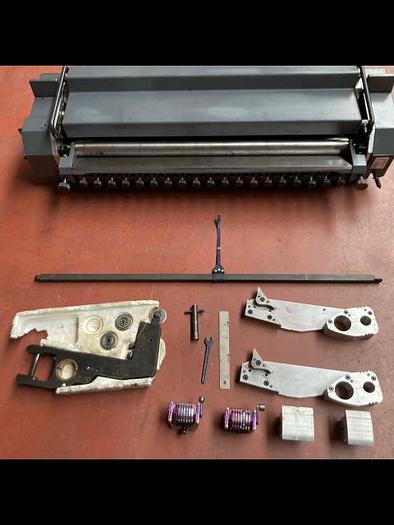

1-color offset press PRINTMASTER GTO 52-1+ of 1999 n°717.624, 12 mios imps, 36x52 cm, 8000 sph, DDS dampening, segmented ink blade, WEKO powder spray, with Numbering and Perforating unit

The Printmaster GTO 52 combines proven technology with high reliability in production and is therefore a press you can rely on. Its enhanced ease of operation and optimized ergonomic design make it the ideal gateway to high-quality professional offset printing. Typical print jobs include classical commercial work such as business stationery, brochures, leaflets, forms, postcards, greetings cards, dust covers, labels, etc

1. Single-sheet feeder with integrated pre-piling device - flexible and easy to configure
2.  Printing unit - precise and long-lasting
3.  DDS II - alcohol-free direct continuous dampening system
4.  High-volume inking unit with a storage capacity of 6.5 : 1 for maximum printable area
5.  Sheet-reversing device - for changeover between straight printing and perfecting modes (optional)
6.  Delivery - with line powder spray device and delivery fans for safe sheet delivery
7.

Single-sheet feeder

Pre-loading device

Electropneumatic missing/misaligned sheet control

Electromechanical double-sheet detectors + ultrasonic double sheet detector

Push side lay

Alcohol-free direct continuous dampening unit

Dampening solution circulation and cooling device

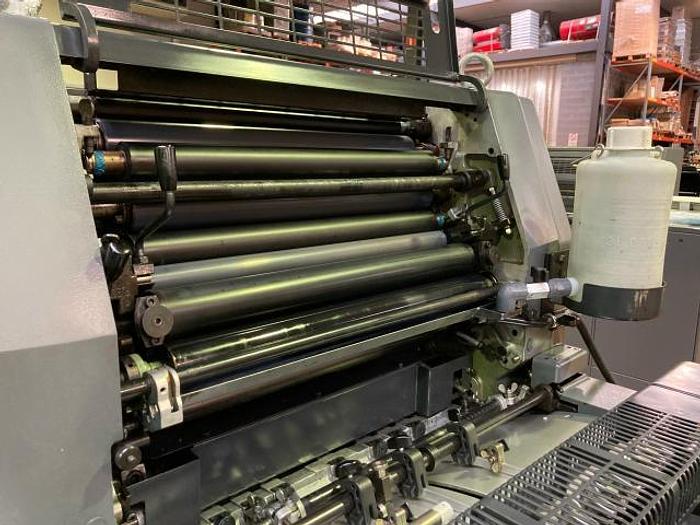

16 rollers including ink fountain roller

Laser-slit knife-type ink fountain

Maximum lateral distribution 25 mm (1 in)

Manually selectable time for lateral distribution

Chromium-plated plate cylinder, undercut 0.03 mm (0.002 in)

Coarse circumferential register adjustment 50 mm forwards, 10 mm back

Coarse circumferential register adjustment 360°

Fine circumferential register adjustment ± 2 mm (± 0.08 in)

Fine lateral register adjustment ± 2 mm (± 0.08 in)

Corrosion-protected blanket cylinder (undercut 3 mm (0.1 in))

Anodized impression cylinder with exchangeable cylinder jacket

Heidelberg quick register system

Transfer drums I and III with rough-chromium-plated, ink-repellent surface

Transfer drum II with starwheel rods and starwheels

Standard delivery with 2 gripper bars

Delivery drum with starwheels

Line powder spray device

Delivery fans

Printing Stock Thickness 0.03 - 0.4 mm (0.0012 - 0.016 in) Max. sheet size 360 x 520 mm (14.17 x 20.47 in) Min. sheet size 105 x 180 mm (4.13 x 7.09 in) Max. print format 340 x 505 mm (13.39 x 19.88 in) Gripper margin 8 - 10 mm (0.32 - 0.39 in) Min. sheet size in perfecting mode 140 x 180 mm (5.51 x 7.09 in) Max. print format in perfecting mode 340 x 505 mm (13.39 x 19.88 in) Plates Length x width 400 x 510 mm (15.75 x 20.08 in) Thickness up to 0.15 mm (0.006 in) Plate Cylinder Undercut 0.03 mm (0.0012 in) Distance from leading edge of plate to start of printing 35 mm (1.4 in) Blanket Cylinder   Undercut 3.0 mm (0.12 in) Length x width of blanket 445 x 520 mm (17.52 x 20.47 in) Blanket thickness 1.9 mm (0.075 in) Remote Register Adjustments Circumferential register +/- 2 mm (+/- 0.079 in) Lateral register +/- 2 mm (+/- 0.079 in) Pile Heights Feeder 400 mm (15.75 in) Standard delivery400 mm (15.75 in)
