2010 BACCIOTTINI PIT STOP DG LINE 6500

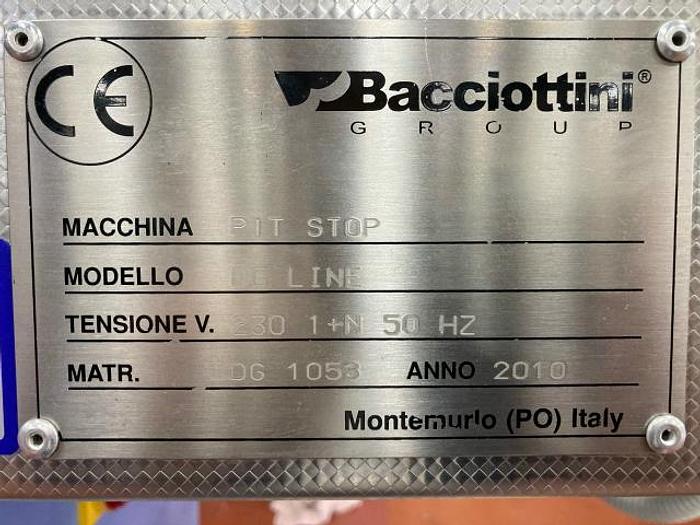

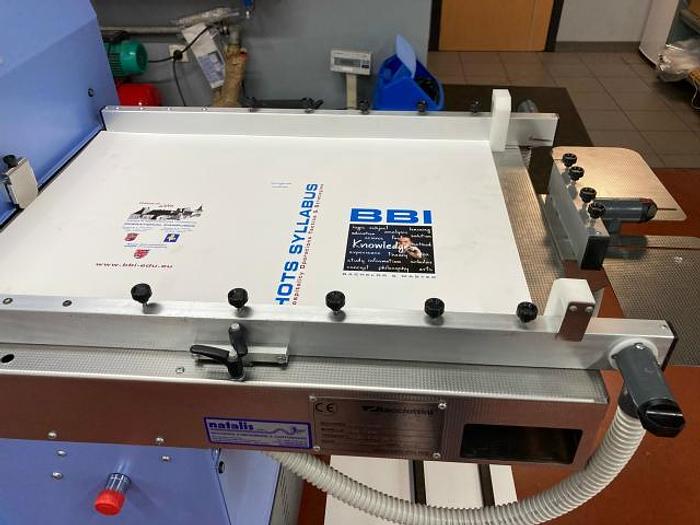

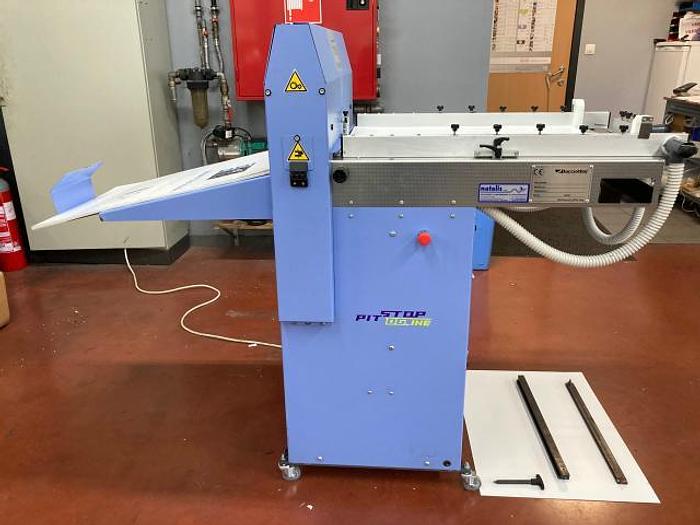

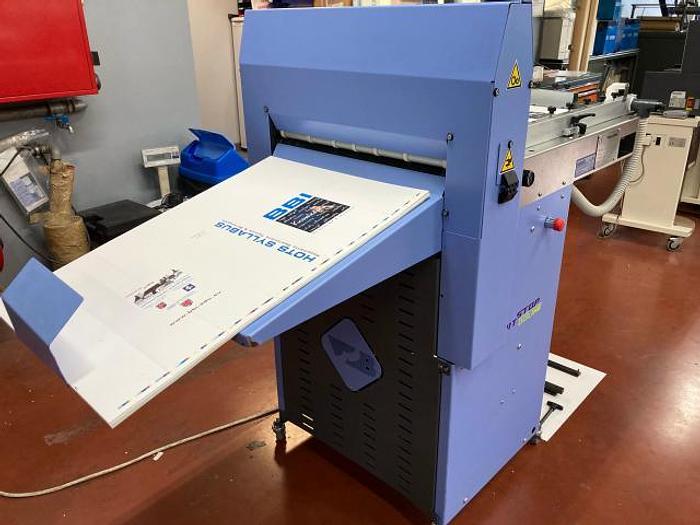

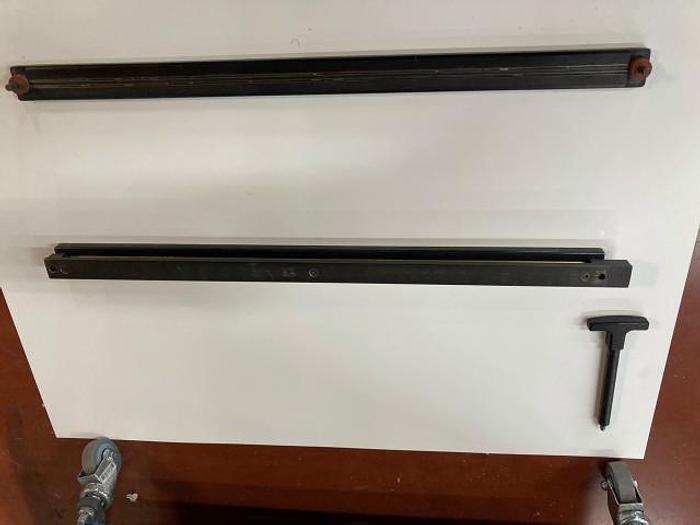

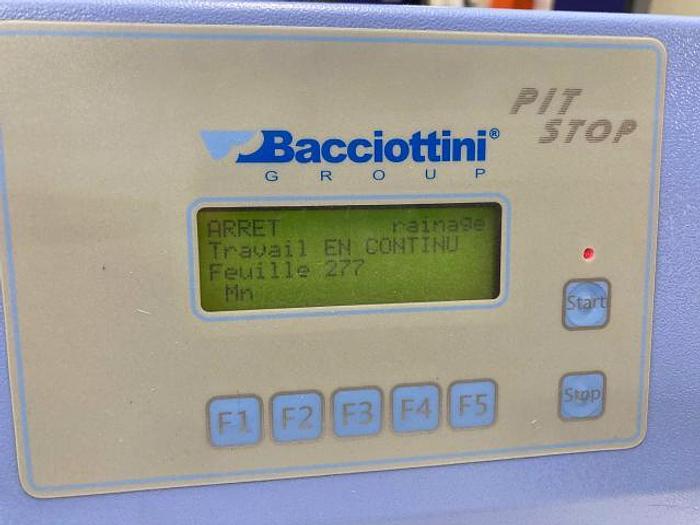

BACCIOTTINI Pit Stop DG Line 6500 creasing machine from 2010 n ° DG 1053, standard format 50x70 cm with extension option width up to 50x85 cm Automatic creasing and punching machine, suitable for intensive use and intended for graphic arts professionals Creasing system combining blade and anvil allowing creasing without marking the surface of the fragile documents resulting from digital prints (ink or toner) or offsets. Easy-to-use LCD control screen with buttons for making all settings. Possibility of memorizing 20 programs of 20 operations each. Bottom-suction paper pick-up device suitable for continuous feeding. Low stack feeding table with adjustable side and rear stops. Adjustable blower for efficient deflection of document stacks. Reception table with adjustable rear stop and two movable magnetic side stops. Possibility of replacing the creasing tool with a transverse punching tool to make coupons detachable Quick and easy change of tools from the side, without any adjustment. Housing for storing creasing and / or perforating tools, under the infeed table Supplied with 2 creasing tools and 1 micro-perforation tool Accepted weights: 80 to 400 g / m2 or approximately 0.4 mm thick (including laminated media). Minimum accepted format: 80 x 100 mm Maximum accepted format: 500 x 700 mm (500x850 mm) Minimum distance between two creases: 0.1 mm Productivity: up to 6,500 A4 documents per hour (with 1 creasing) Motor power: 2 kW Power supply: 230 V / 50 Hz Possibility of connection with the BACCIOTTINI Butterfly Easy 2 Fold folding machine for a precise creasing-folding combination and efficient. Compact and mobile machine, mounted on casters Dimensions: H 1500 x W 1200 x D 750 mm. Weight: 180 kg.
